🚀 Flashcards Feature - Full Stack Development Breakdown

Site and Individual Feature

The purpose of our program is to create a functioning, user-friendly, studying social media website for students. Users can interact with flashcards, quizzes, chatbots, studylogs, gradelogs, and more, and the changes are reflected in the backend database.

Flashcards allow students to Create, Update, and Delete flashcards in specefic Decks







🏆 Meeting CPT (Vide Showcase - PPR)

This project fully satisfies the College Board CPT requirements and the FRQ specifications by implementing structured programming concepts, data storage, and algorithmic logic. Below is a detailed breakdown of how the requirements are met with supporting code examples.



🔍 CPT & FRQ Requirement Breakdown

Requirement How It Appears in Code
Input Handling Users input flashcard data via HTML forms, triggering JavaScript functions that send fetch requests to the backend API.
Data Collection Uses lists (decks, flashcards) to manage and store data, and a SQL database (Flashcard model) for persistent storage.
Student-Developed Procedures Functions like updateFlashcard(), deleteFlashcard(), fetchDecks(), and openDeck() ensure modularity and reusability.
Algorithm Design Implements Sequencing (step-by-step execution), Selection (conditionals for validation), and Iteration (loops for fetching/displaying data) in UI and backend logic.
Procedures with Parameters Functions such as createFlashcard(title, content, deck_id), updateFlashcard(flashcard_id, newTitle, newContent), and deleteFlashcard(flashcard_id) take parameters to process flashcard data dynamically.
Instructions for Output The frontend updates dynamically with visual elements that reflect user actions (flashcard flipping, adding/removing decks, and modifying flashcards).
Database Usage The backend SQLAlchemy model (Flashcard) stores and retrieves flashcards with relationships to users (user_id) and decks (deck_id).
Use of Lists and Dictionaries Lists (decks = [], flashcards = []) store collections of data in the frontend, while dictionaries (read() function) format data for API responses.
Querying a Database SQLAlchemy queries like Flashcard.query.filter_by(_deck_id=deck.id).all() extract relevant data for users and decks.
Tester Data and Recovery Uses functions like db_init(), db_restore(), and db_backup() to manage test data and recover previous states.
RESTful API Endpoints Implements RESTful principles with POST, GET, PUT, and DELETE routes for managing flashcards and decks.

✅ CPT Code Implementation

1️⃣ Input Handling (User Input)

@flashcard_api.route('/flashcard', methods=['POST'])
@token_required()
def create_flashcard():
    data = request.json
    flashcard = Flashcard(
        title=data['title'],
        content=data['content'],
        user_id=g.current_user.id,
        deck_id=data['deck_id']
    )
    flashcard.create()
    return jsonify(flashcard.read()), 201
  • Accepts user input from the frontend (title, content, deck_id).
  • Stores flashcard data in the database.
  • Returns a response confirming the creation.

2️⃣ Data Collection (Lists & Databases)

Frontend:

let decks = []; // Array to store all decks
let currentDeck = null; // Currently active deck
let currentCardIndex = 0; // Tracks the current flashcard
  • Uses a list (decks) to store all decks and an index (currentCardIndex) to navigate through flashcards.

Backend:

class Flashcard(db.Model):
    __tablename__ = 'flashcards'
    id = db.Column(db.Integer, primary_key=True)
    _title = db.Column(db.String(255), nullable=False)
    _content = db.Column(db.String(255), nullable=False)
    _user_id = db.Column(db.Integer, db.ForeignKey('users.id'), nullable=False)
    _deck_id = db.Column(db.Integer, db.ForeignKey('decks.id'), nullable=True)
  • Uses a database model to store flashcards persistently.
  • Maintains relationships using ForeignKey to link users and decks.

3️⃣ Student-Developed Procedure

def update_flashcard(flashcard_id, new_title, new_content):
    flashcard = Flashcard.query.get(flashcard_id)
    flashcard._title = new_title
    flashcard._content = new_content
    db.session.commit()
    return flashcard.read()
  • Defined procedure (update_flashcard) with parameters (flashcard_id, new_title, new_content).
  • Modifies existing flashcard records in the database.

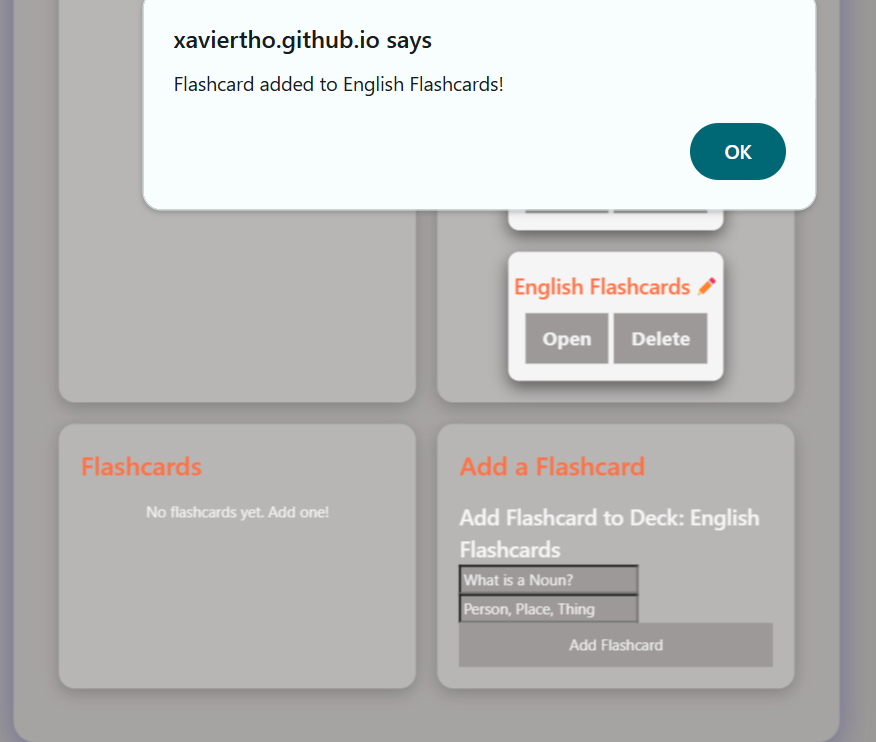

4️⃣ Algorithm Design (Sequencing, Selection, Iteration)

document.getElementById('add-card-btn').addEventListener('click', async () => {
    const question = document.getElementById('question').value.trim();
    const answer = document.getElementById('answer').value.trim();

    if (!question || !answer) {  // ❗️ Selection (IF statement)
        alert('Please provide both a question and an answer.');
        return;
    }

    try {
        const response = await fetch(`${pythonURI}/api/flashcard`, {  // 🔄 Sequencing
            method: 'POST',
            headers: { 'Content-Type': 'application/json' },
            credentials: 'include',
            body: JSON.stringify({
                title: question,
                content: answer,
                deck_id: currentDeck.id,
                user_id: 1
            }),
        });

        if (response.ok) {  // ❗️ Selection
            const newCard = await response.json();
            currentDeck.cards.push(newCard); // 🔄 Iteration (managing multiple flashcards)
            displayFlashcards(currentDeck.cards);
        }
    } catch (error) {
        console.error('Error adding flashcard:', error);
    }
});
  • Selection: The code uses if statements to check if the question or answer is missing (if (!question   !answer) {}) or if the response is successful (if (response.ok) {}).
  • Sequencing: The code follows a logical sequence where it first checks for input, then makes a network request, and finally updates the deck with the new card if the request is successful.
  • Iteration: The currentDeck.cards.push(newCard) adds the newly created card to an array, and displayFlashcards(currentDeck.cards) iterates through the updated cards to display them.

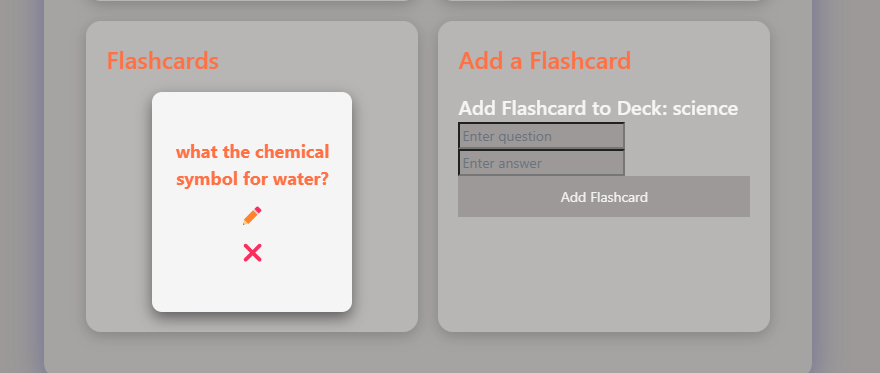

5️⃣ Output Handling (Visual Updates)

function displayFlashcards(cards) {
    cards.forEach(card => {
        const cardElement = document.createElement('div');
        cardElement.textContent = card.title;
        cardElement.onclick = () => {
            cardElement.textContent = cardElement.textContent === card.title ? card.content : card.title;
        };
        container.appendChild(cardElement);
    });
}
  • Updates the frontend dynamically based on user interaction.

📌 API Endpoints and CRUD operations

1️⃣ Creating a Flashcard (POST /api/flashcard)

@flashcard_api.route('/flashcard', methods=['POST'])
@token_required()
def create_flashcard():
    data = request.json
    flashcard = Flashcard(
        title=data['title'],
        content=data['content'],
        user_id=g.current_user.id,
        deck_id=data['deck_id']
    )
    flashcard.create()
    return jsonify(flashcard.read()), 201
  • Takes user input (title, content, deck association).
  • Saves it in the database using SQLAlchemy.
  • Ensures authentication using JWT tokens.

2️⃣ Reading Flashcards (GET /api/flashcard)

@flashcard_api.route('/flashcard', methods=['GET'])
@token_required()
def get_flashcards():
    current_user = g.current_user
    flashcards = Flashcard.query.filter_by(_user_id=current_user.id).all()
    return jsonify([flashcard.read() for flashcard in flashcards])
  • Retrieves all flashcards for the logged-in user.
  • Uses SQLAlchemy query filtering to ensure user privacy.

3️⃣ Updating a Flashcard (PUT /api/flashcard/<id>)

@flashcard_api.route('/flashcard/<int:flashcard_id>', methods=['PUT'])
@token_required()
def update_flashcard(flashcard_id):
    data = request.get_json()
    flashcard = Flashcard.query.get(flashcard_id)
    if not flashcard or flashcard._user_id != g.current_user.id:
        return jsonify({'message': 'Flashcard not found or unauthorized'}), 404
    flashcard._title = data.get('title', flashcard._title)
    flashcard._content = data.get('content', flashcard._content)
    db.session.commit()
    return jsonify(flashcard.read())
  • Updates the title and content dynamically.
  • Verifies user authorization before modifying data.

4️⃣ Deleting a Flashcard (DELETE /api/flashcard/<id>)

@flashcard_api.route('/flashcard/<int:flashcard_id>', methods=['DELETE'])
@token_required()
def delete_flashcard(flashcard_id):
    flashcard = Flashcard.query.get(flashcard_id)
    if not flashcard or flashcard._user_id != g.current_user.id:
        return jsonify({'message': 'Flashcard not found or unauthorized'}), 404
    db.session.delete(flashcard)
    db.session.commit()
    return jsonify({'message': 'Flashcard deleted successfully'})
  • Removes flashcards permanently from the database.
  • Ensures users can only delete their own flashcards.

🔄 CRUD Operations Summary

Operation Backend Endpoint Example Code
Create POST /api/flashcard create_flashcard()
Read GET /api/flashcard get_flashcards()
Update PUT /api/flashcard/<id> update_flashcard()
Delete DELETE /api/flashcard/<id> delete_flashcard()

This project effectively manages flashcard data with an optimized database model, secure API access, and efficient CRUD operations.

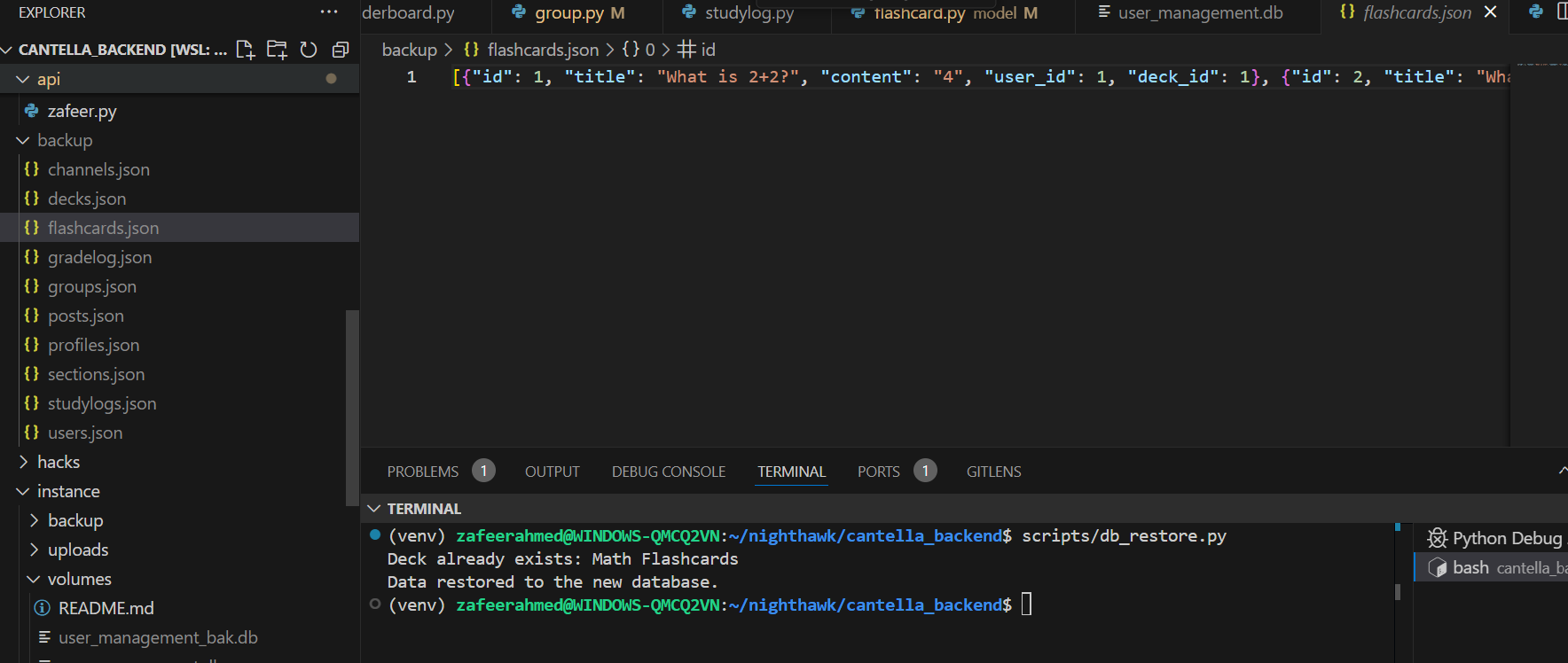

Using db_init, db_restore, db_backup to show tester data creation and data recovery

Tester Data:

# Add some flashcards with test data
            flashcards_data = [
                {"title": "What is 2+2?", "content": "4", "user_id": user.id, "deck_id": deck.id},
                {"title": "What is 5+3?", "content": "8", "user_id": user.id, "deck_id": deck.id},
                {"title": "What is 10-6?", "content": "4", "user_id": user.id, "deck_id": deck.id}
            ]
